With the Rebel K, all the hard work is done. It is the best, quickest, and easiest way to get your K-swap up and running!
ECU designed from the ground up to suit Honda's popular K engines
Start-up is a breeze thanks to the new Rebel K Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit Honda K applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports:
K20A
K24A
K24Z
Manual Transmissions Only - Kit supplied with sub-harnesses to suit 2002-04 and 2005+ Honda K series transmissions
Please note
No ignition sub-harness required - factory K-series ignition coil connectors are built into the harness
Kit supplied with both cable throttle and DBW throttle sub-harnesses
Kit supplied with Keihin injector harness. EV6 (USCAR), EV1 and Sumitomo (Denso) injector harnesses available to be purchased separately - see part numbers HT-186013, HT-186014, HT-186015
Does Not Support
Automatic transmissions, OEM air temperature sensor, OEM knock sensor, OEM O2 sensor, VTEC pressure switch, Thermofan switch, Reverse switch (transmission), Serial communications with factory-fitted Honda DBW modules, Serial communications with factory-fitted Honda BCM / ICC modules (no factory A/C request, coolant gauge, etc), Low impedance injectors

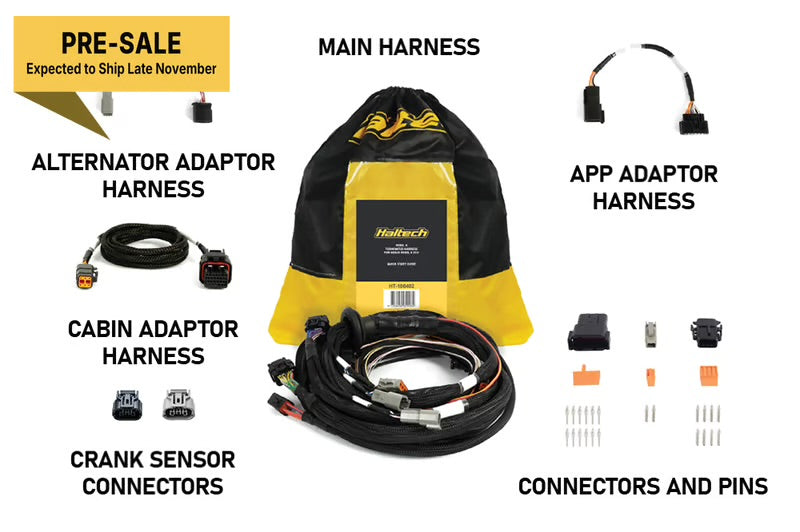

Kit Includes:

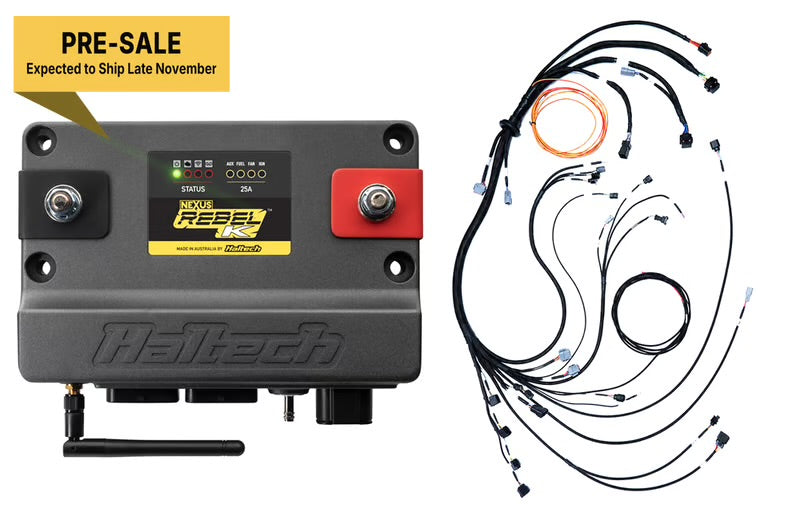

- HT-220003 - Nexus Rebel K ECU
- HT-186402 - Nexus Rebel K main terminated harness
- HT-186130 - Cabin adaptor harness
- HT-186122 - Alternator adaptor harness
- HT-186133 - Honda APP adaptor harness
- K20 and K24 crank sensor connectors
- Pack of connectors and pins to terminate spare inputs and outputs

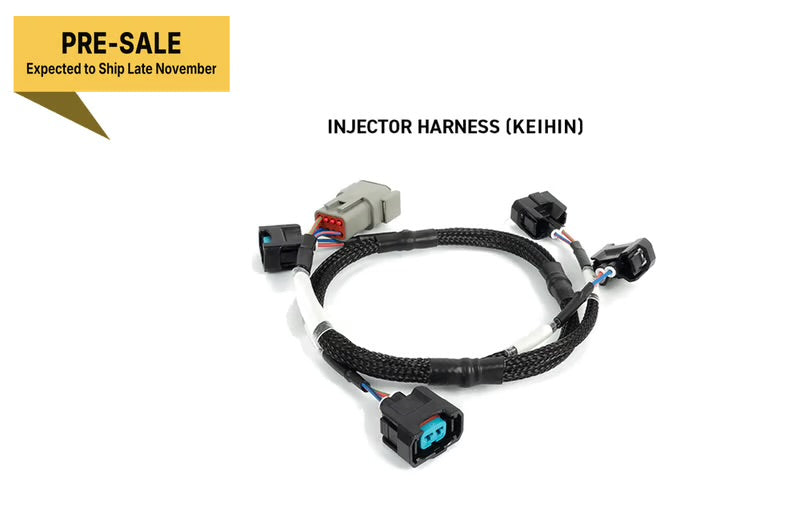

- HT-186016 - i4 Keihin primary injector harness

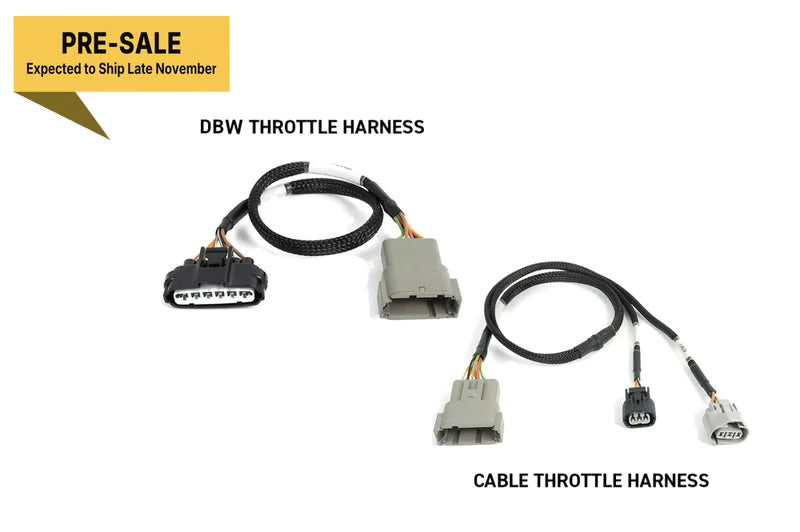

- HT-186168 - Honda DBW throttle sub-harness
- HT-186169 - Honda cable throttle sub-harness

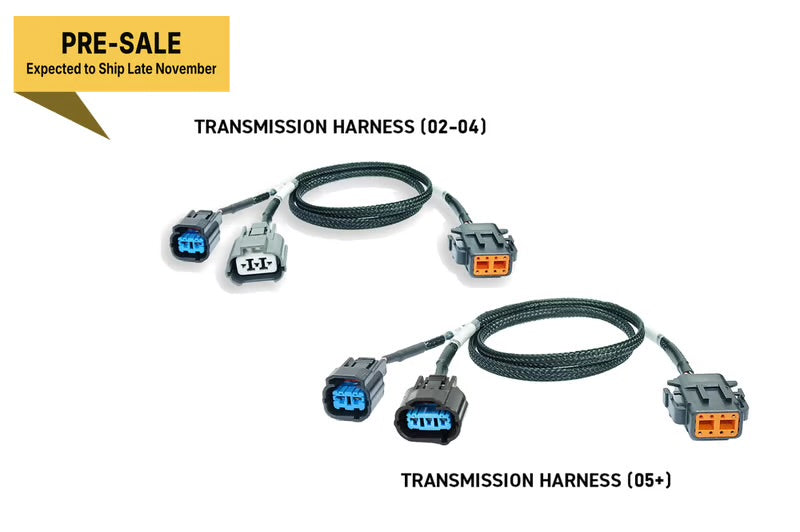

- HT-187011 - Nexus 02-04 Honda transmission sub-harness
- HT-187012 - Nexus 05+ Honda transmission sub-harness

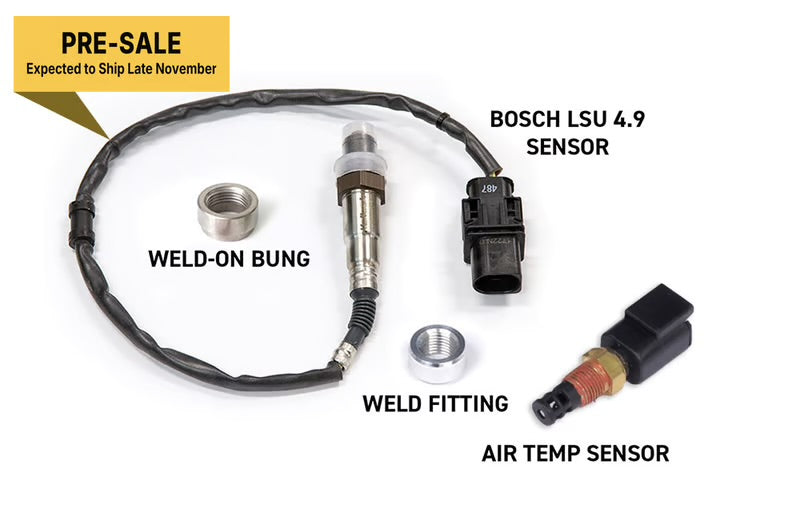

Sensor Pack
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor 1/8 NPT
- Weld on fitting for Air Temp Sensor

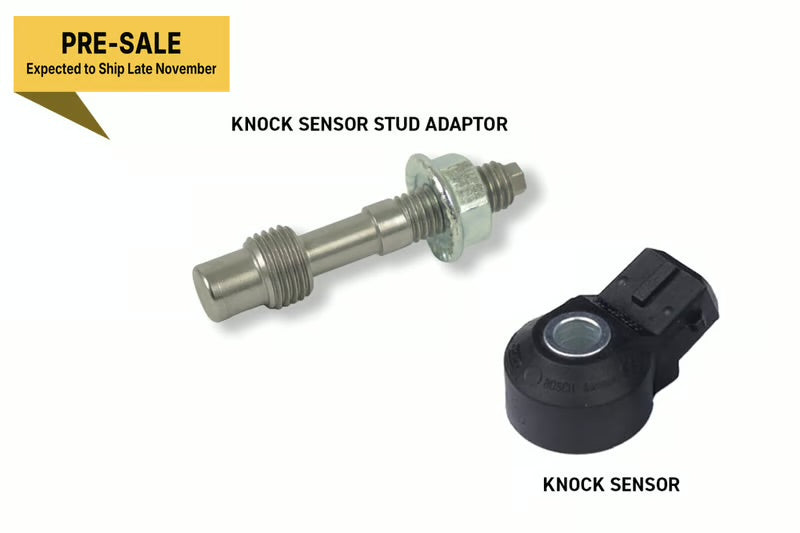

- Bosch Knock Sensor with stud adaptor and M8 nut
