The DW440 brings brushless pump technology INTO the fuel tank. With a total height of only 4 inches (103mm), it is the only high flow aftermarket brushless pump that is easily retro-fitted into an OE pump module. Brushless technology reduces friction and heat, efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
440LPH at 40psi,13.8v, 620LPH at 40psi, 20v
Compact size is optimized for in-tank use
Universal bulkhead harness and fitment kit included
Compatible with all fuels including methanol and e100
No brushes + No commutator = Ultimate Durability
The DW Brushless Pump Controller is included with the DW440 and DW650iL fuel pump kits. This controller accepts an 8-26v DC input and creates a digital signal to allow efficient and precise speed and torque control of the pump. The controller is available in 3 configurations: C102 (Dual Speed DW440), C103 (PWM Controlled), and C105 (Dual Speed 650iL)

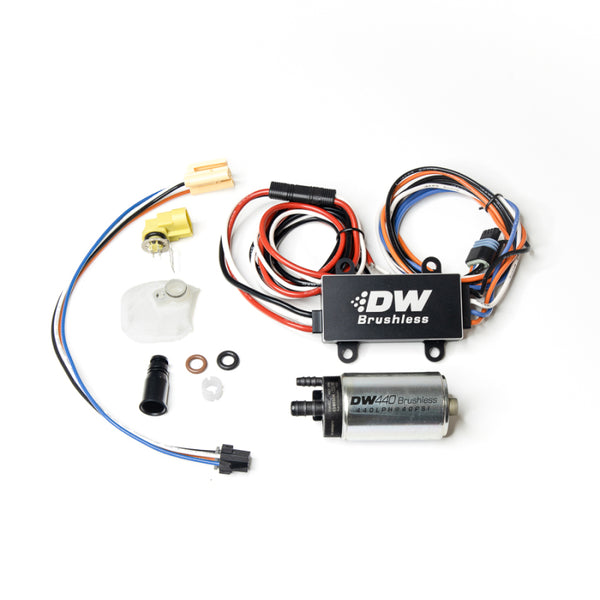

440lph in-tank brushless fuel pump + single/dual speed controller w/ 9-0910 install kit for-
2008-14 Subaru WRX
2008+ Subaru STi
2005-09 Subaru Legacy GT, 2004-06 Pontiac GTO
